Description

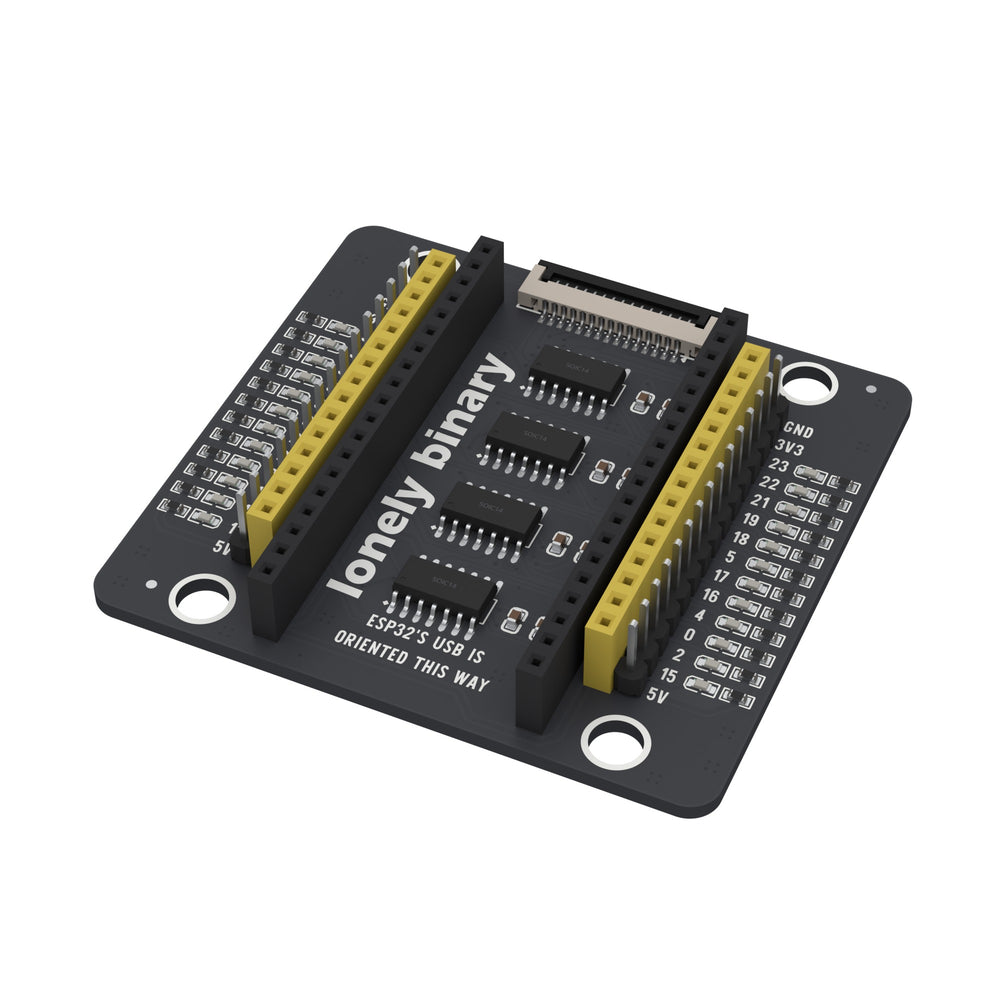

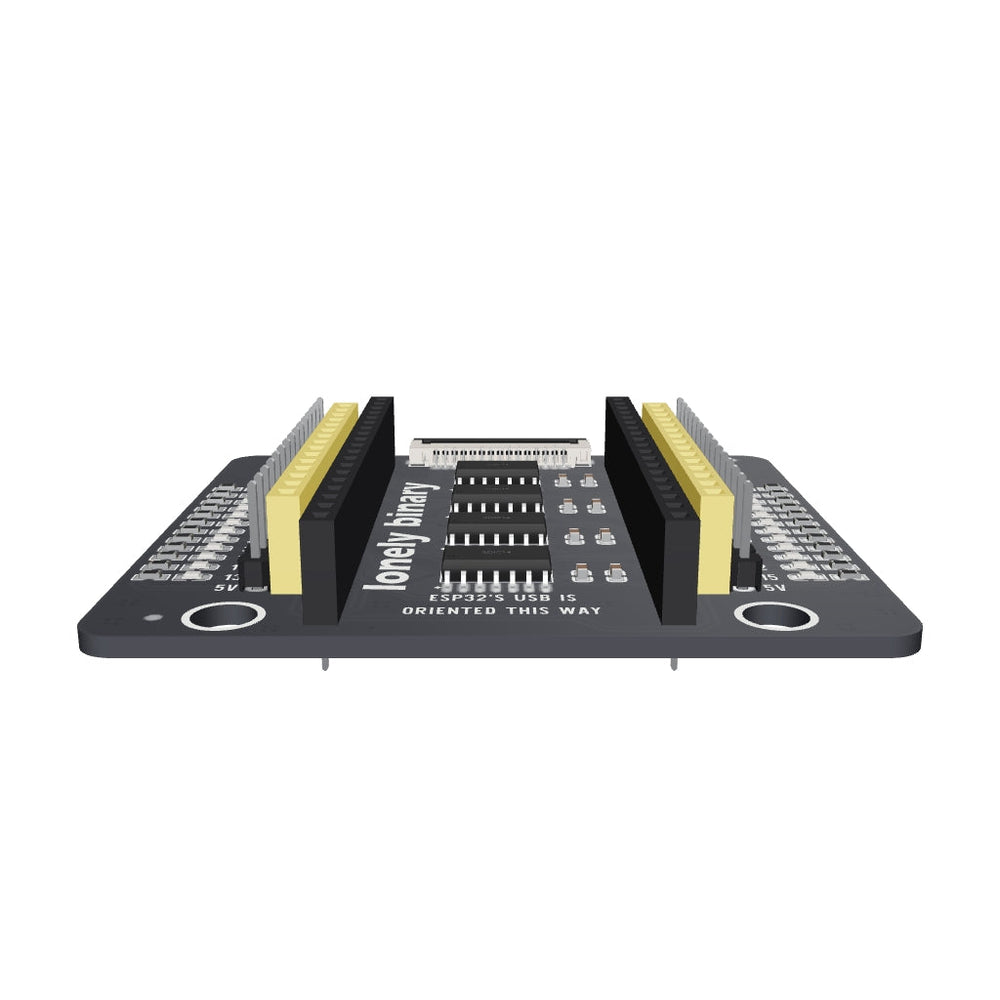

A base for the ESP32 with an LED on every GPIO, so you can see each pin go high or low without a meter. The board plugs into the two black sockets in the middle and every pin comes out to a 2.54 mm header with its own LED beside it. Four 74HC04 inverters drive the LEDs, so they cost your pins nothing.
Highlights

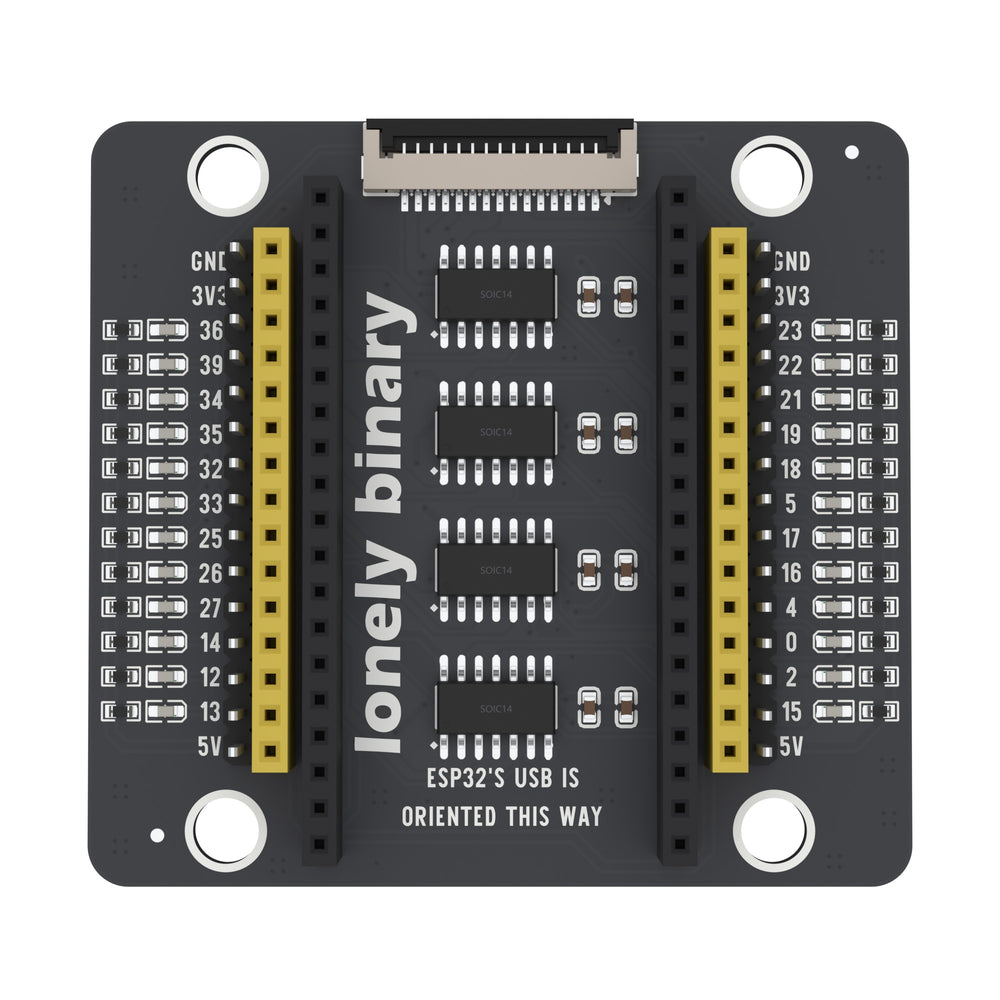

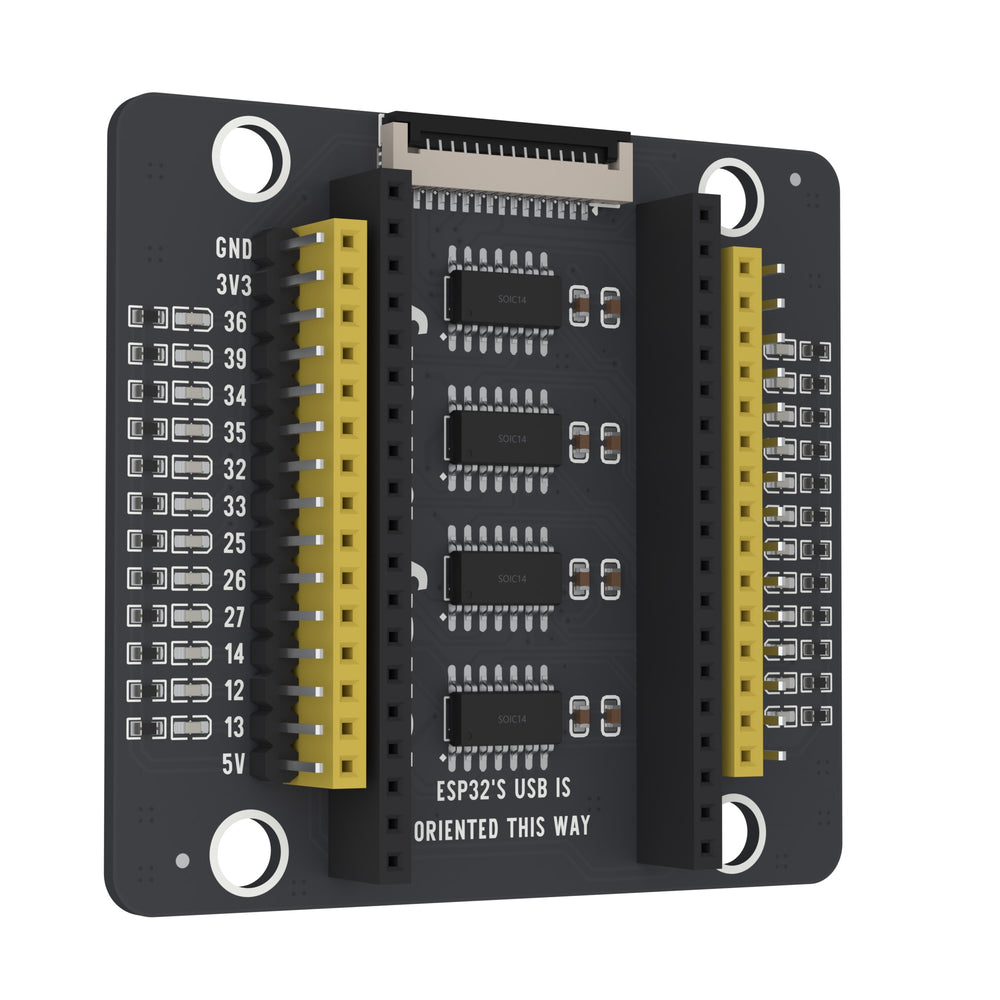

- 24 GPIO LEDs. One LED per GPIO, driven through SN74HC04 inverters so the LEDs do not load the pins.
- Pin strips on both sides. Four 15-way 2.54 mm headers with the pin names printed beside them.

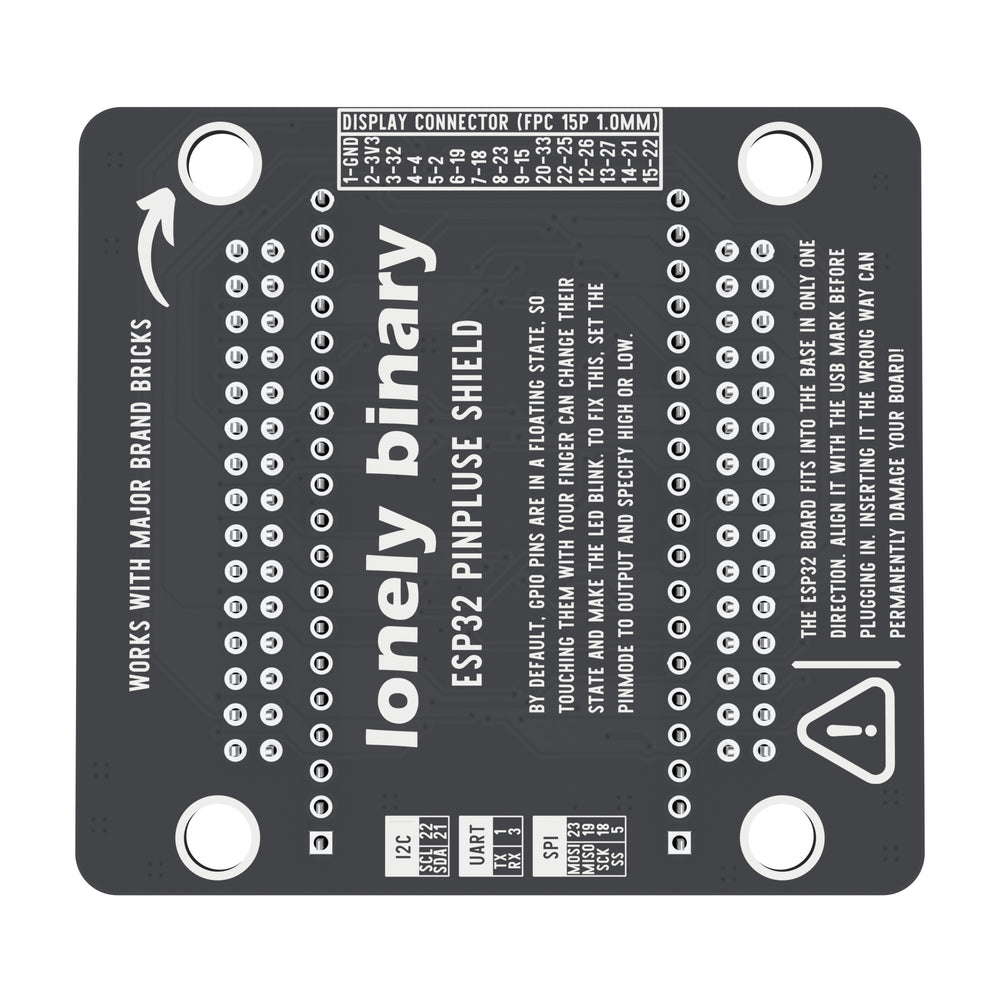

- Display port. A 15-way FPC connector links Lonely Binary TFT, E-Ink and touch displays with one ribbon cable (displays sold separately).
- Four mounting holes for a case or a baseplate.
In the box
- 1 × ESP32 PinPulse Shield, headers fitted
The ESP32 board is not included.
Specifications
- LEDs: 24 × 0603 red, 5.1 kΩ resistors
- Drivers: 4 × SN74HC04 hex inverter
- Edge pins: 4 × 15-way strips, 2.54 mm pitch
- ESP32 sockets: 2 × 19-way, 2.54 mm
- Display connector: 15-way FPC, 1.0 mm pitch
