16mm Latching LED Push Button, 10-Pack
16mm Latching LED Push Button, 10-Pack is backordered and will ship as soon as it is back in stock.
Warranty and returns
Warranty and returns
12-month warranty on everything we sell. If a part is faulty, we'll replace or refund it and cover the return postage. Damage from soldering, wiring mistakes or modification isn't covered.
Changed your mind? Return it unused within 30 days for a full refund, with no restocking fee.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. Full returns policy
Shipping
Shipping
Free standard shipping within Australia on orders over A$55. Under A$55, standard shipping is A$6.95.
New Zealand A$8.99. Rest of the world A$14.95, flat rate.
Orders ship from Macquarie Park, NSW within one business day of payment when the item is in stock. Shipping policy
16mm Latching LED Push Button, 10-Pack is backordered and will ship as soon as it is back in stock.
Description
Description

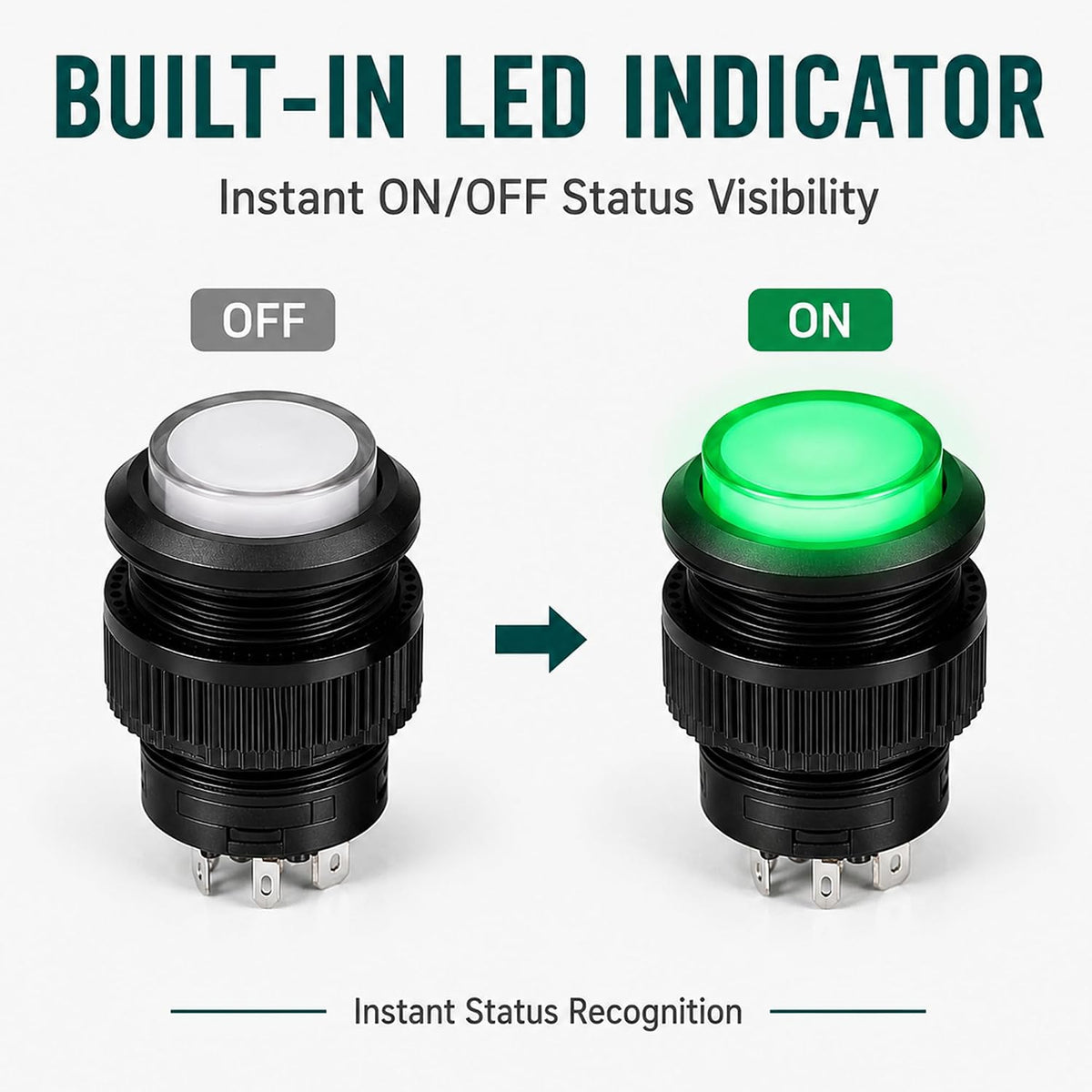

Ten illuminated latching push buttons in five colours, for control panels, arcade cabinets, dashboards and project boxes.
Highlights
- Latching. Press once for on, again for off. The switch holds its position, so it suits power and mode switches.
- Separate LED terminals. Four terminals: two for the switch and two for the LED (+ and −), so a microcontroller can drive the light independently.
- Add a series resistor. The LED has no built-in resistor. Its forward voltage is about 2.2 V, so fit 220–1000 Ω from 3 V or more; wiring it straight to 5 V will damage it.

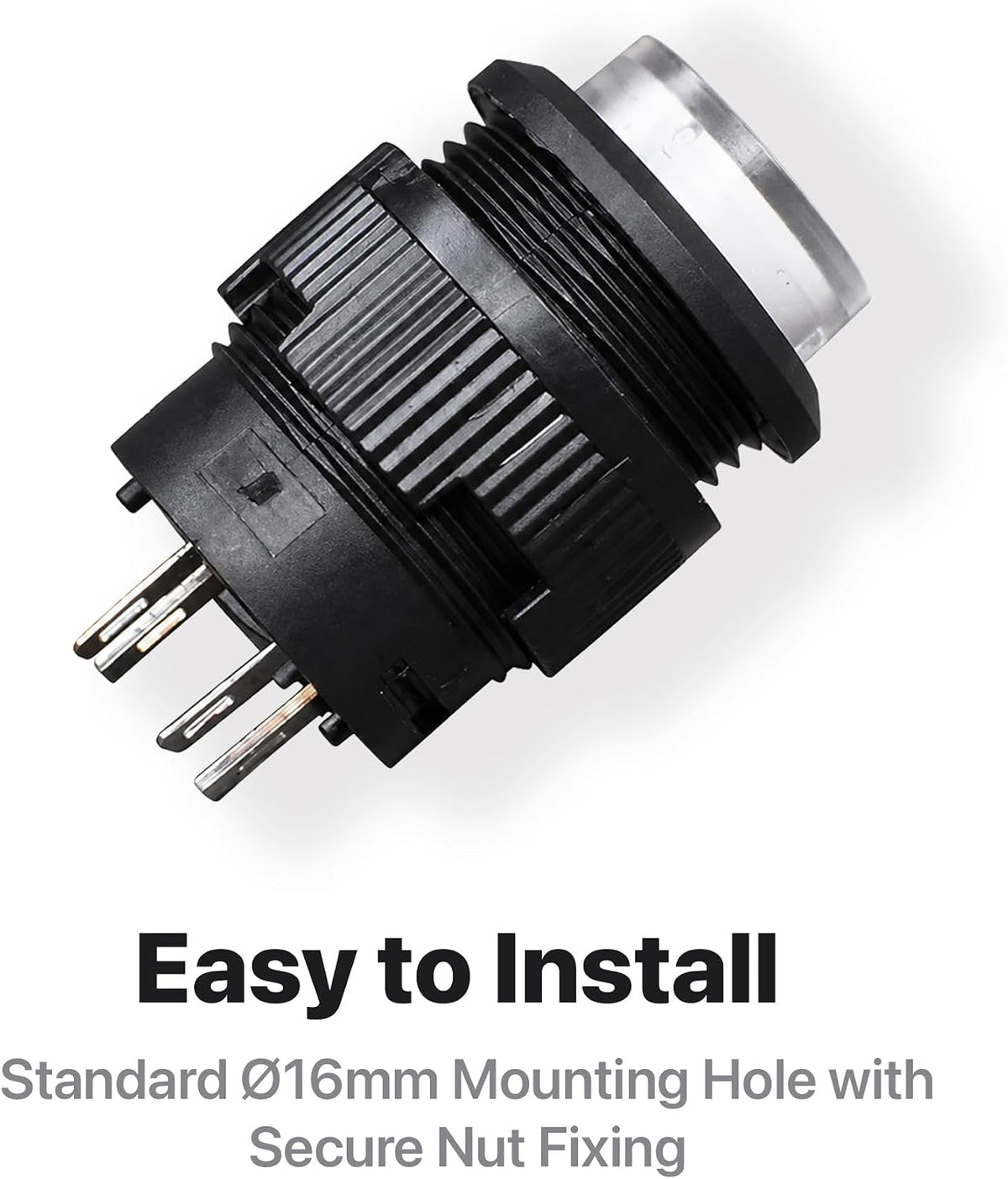

- Panel mount. Fixes with the supplied knurled nut, no adhesive or bracket needed.
- Sorted storage. Supplied in a hinged compartment case.
In the box

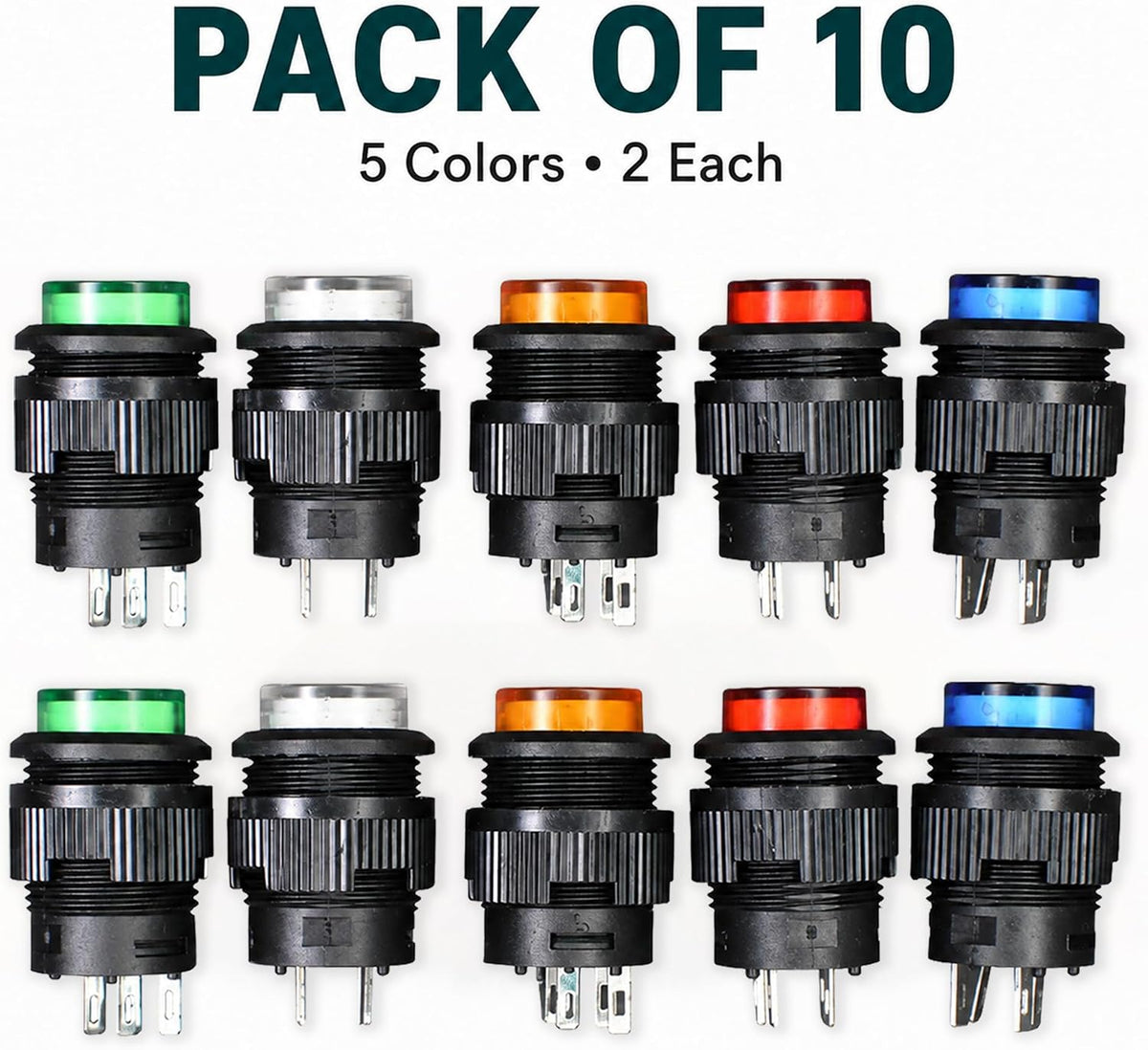

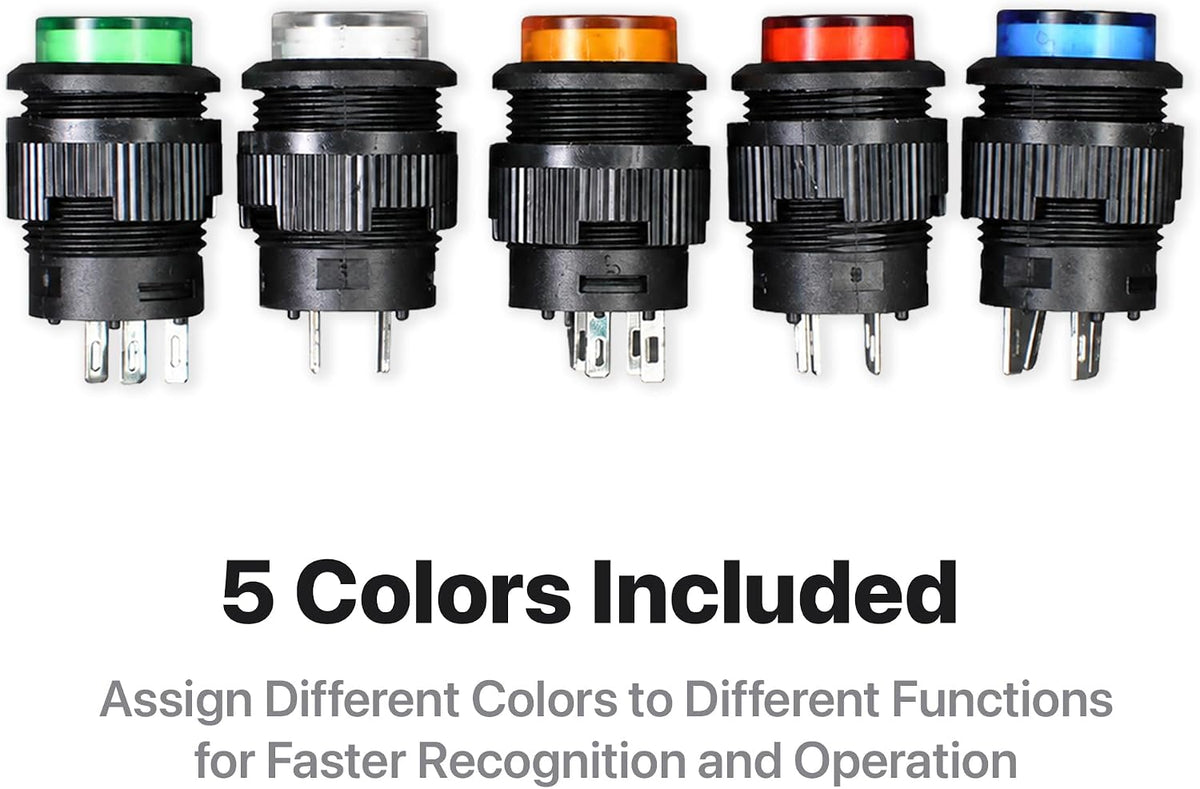

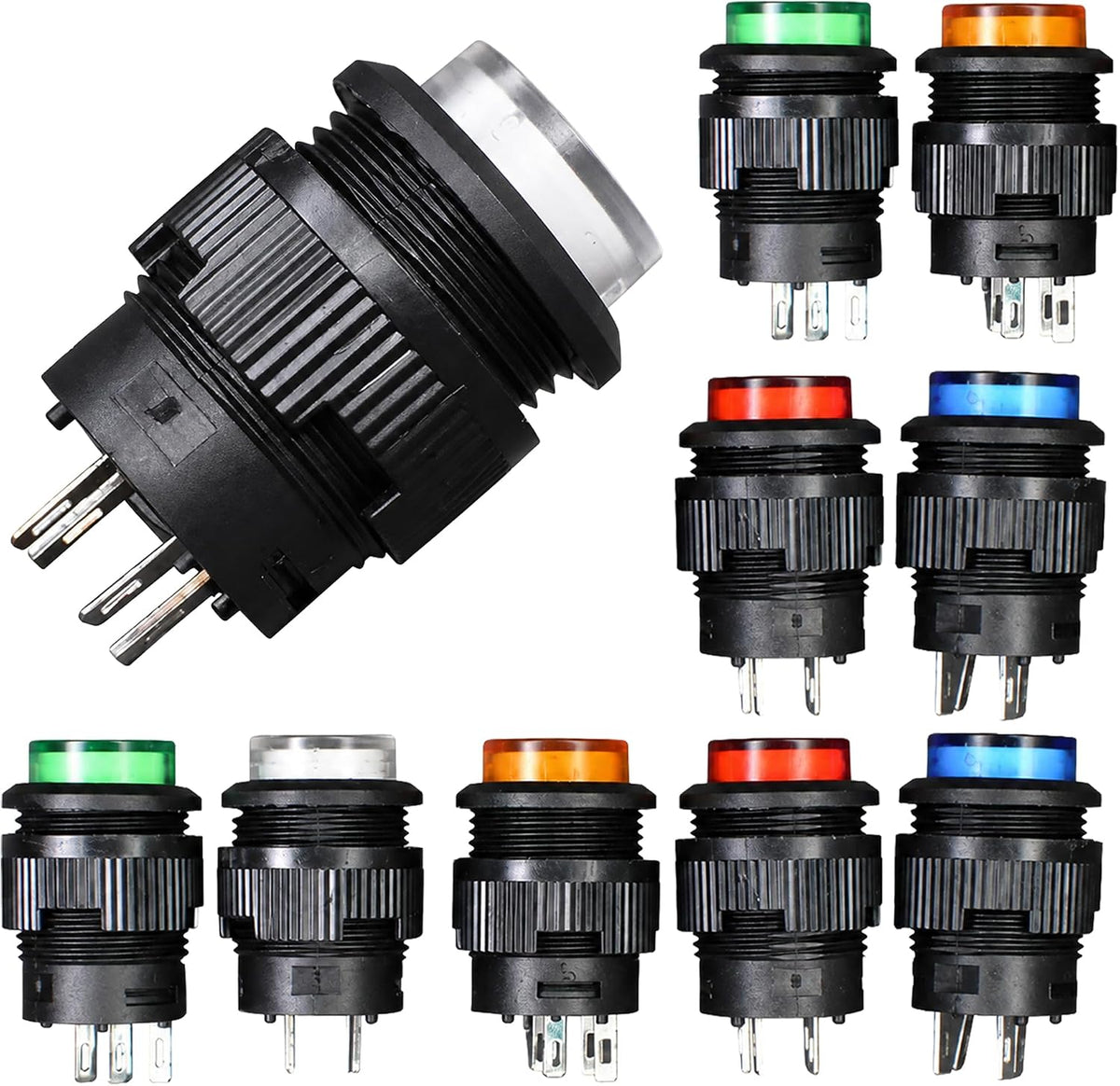

- 10 × latching LED push button: 2 each of red, yellow, green, blue and white
- Knurled mounting nuts
- Hinged compartment case
Specifications

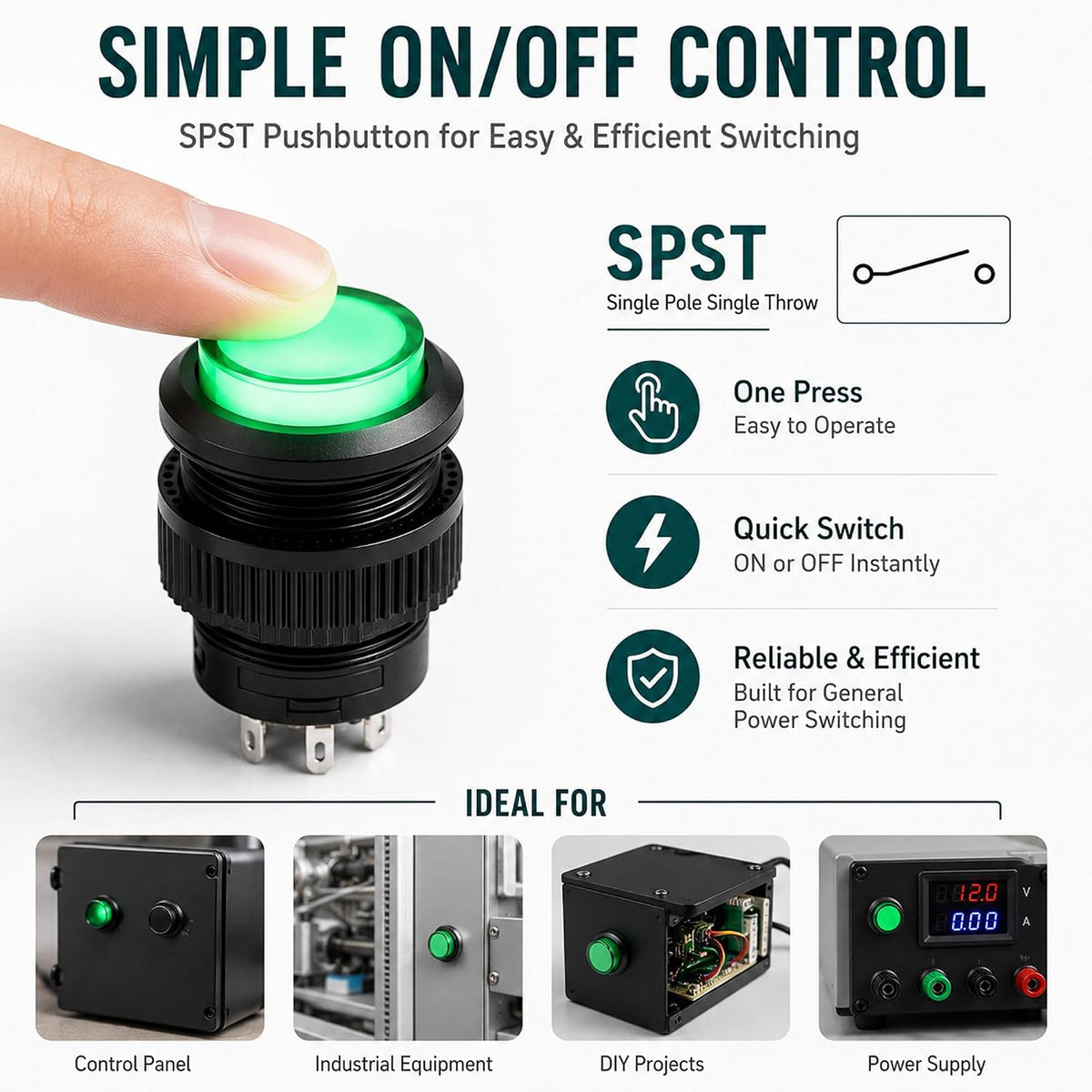

- Switch type: SPST, latching
- Terminals: 4 (2 switch, 2 LED)
- LED forward voltage: About 2.2 V, no built-in resistor
- Use: Low-voltage circuits
