Description
An ESP32-S3 Gold Edition board with the PinPulse shield, which puts an LED on every GPIO so you can see pin states as your code runs.
Highlights

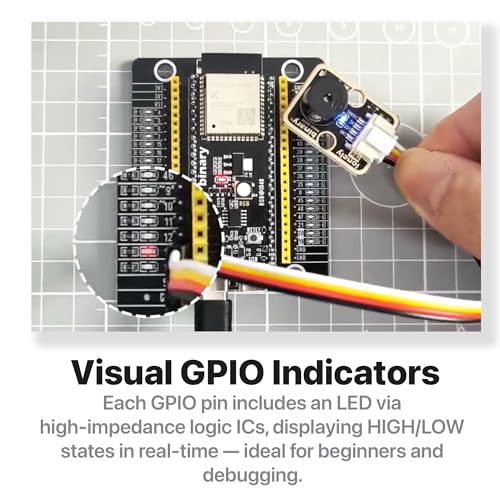

- 36 GPIO LEDs. Buffered through 74HC14D logic, so the LEDs show HIGH and LOW without loading SPI, I2C, UART or PWM signals.

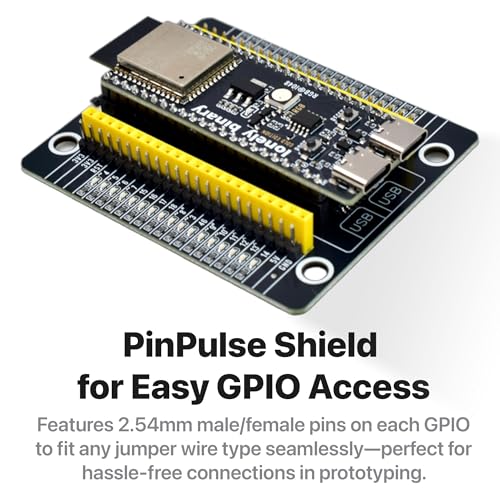

- Pins and sockets. Every GPIO has both a male pin and a female socket, taking any jumper wire.

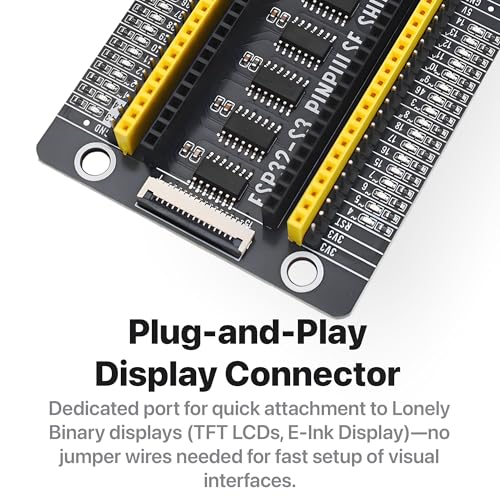

- Display port. A 15-way FPC connector links Lonely Binary TFT, E-Ink and touch displays with one ribbon cable (displays sold separately).
- Two USB-C ports. One for native USB (HID, MSC, CDC), one for UART programming and debugging.

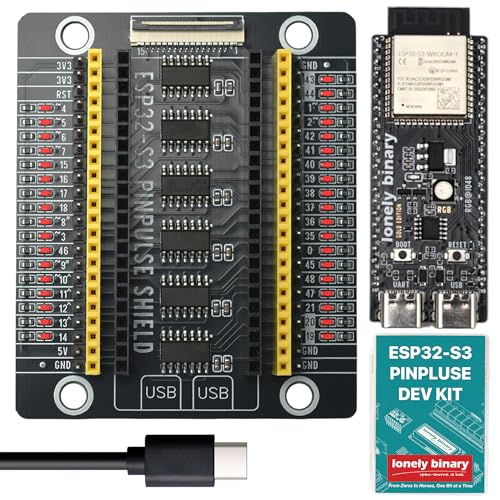

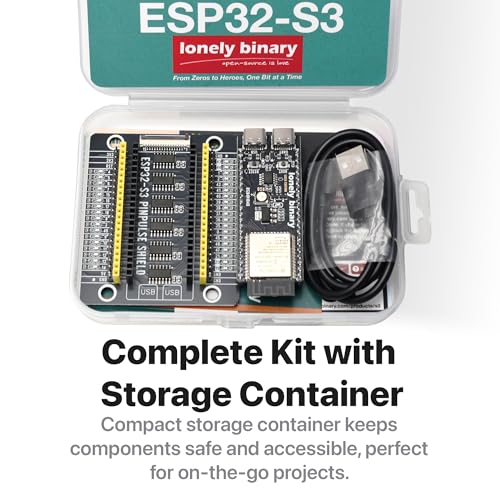

In the box
- 1 × ESP32-S3 Gold Edition board (N16R8)
- 1 × ESP32-S3 PinPulse shield
- 1 × USB-A to USB-C cable
Specifications

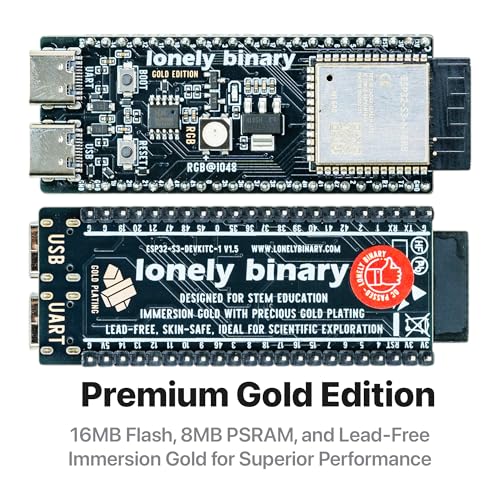

- Module: ESP32-S3-WROOM-1, dual-core Xtensa LX7, 240 MHz
- Memory: 16 MB flash, 8 MB PSRAM
- Wireless: Wi-Fi 802.11 b/g/n, Bluetooth 5.0 LE
- GPIO LEDs: 36, one per GPIO
- Edge rows: 2 × 22 pins and sockets a side
- Display connector: 15-way FPC
Works with
Arduino IDE, ESP-IDF, MicroPython and PlatformIO.
